How to Finish Aluminium Battens: Comparing the Most Common Methods
When designing an aluminium batten fence, privacy screen, gate or architectural screening project, one of the final details to consider is how the ends of the battens will be finished.
The best solution often depends on whether you're using a custom fabricated batten system or a pre-manufactured fencing system.
In this guide, we'll compare the most common methods used to finish aluminium battens and the advantages and disadvantages of each.
Custom Aluminium Batten Fencing vs Batten Systems
Before choosing an end finishing method, it's important to understand the difference between custom fabricated battens and batten systems.
Custom Aluminium Batten Fencing
Custom aluminium batten fencing is fabricated specifically for a project using individual aluminium hollow sections.
The fabricator typically sources:
-
Aluminium battens
-
Posts and framing
-
Hardware
-
Powder coating
This approach offers maximum flexibility and allows the entire project to be colour matched, powder coated or timber-look finished as required.
No two projects are exactly the same.
Aluminium Batten Systems
Batten systems are generally supplied as a complete package and may be manufactured locally or imported.
These systems often arrive pre-finished in powder coat or timber-look finishes and are supplied with proprietary end caps that are designed to fit the system's extrusion profile. Depending on the manufacturer, these may range from simple plastic clip-in caps through to more premium finishing solutions.
Common Ways to Finish Aluminium Battens
1. Welded Aluminium Blanks
Traditionally, many fabricators finish battens by cutting aluminium blanks, welding them onto the ends of the battens and then grinding and finishing the welds.
Advantages
-
Permanent solution
-
Fully concealed finish
-
Can be powder coated with the project
Disadvantages
-
Labour intensive
-
Requires welding
-
Requires grinding and finishing
-
Adds manufacturing time
-
Increases project costs
For larger projects containing hundreds of battens, welding can become extremely time consuming.
2. Plastic End Caps
Plastic end caps are commonly used in both custom projects and pre-manufactured fencing systems.
Advantages
-
Low cost
-
Quick installation
-
Readily available
Disadvantages
-
Limited colour options
-
Can fade and crack over time
-
Less premium appearance
A common issue is black plastic end caps being installed into coloured battens, creating a visible contrast at the end of each section.
3. Clip-In or Snap-Fit End Caps
Many fencing systems utilise proprietary clip-in or snap-fit end caps designed specifically for their extrusion profile.
These caps typically rely on flexible tabs that clip into the extrusion.
Advantages
-
Fast installation
-
Designed specifically for the system
-
Supplied as part of the fencing package
Disadvantages
-
Can loosen over time
-
May require glue or screws
-
Can become dislodged in harsh outdoor environments
As many fencing installers know: If it clips in, it can clip out.
Over time, exposure to heat, UV and expansion cycles can reduce retention, particularly on installations exposed to harsh Australian conditions.
4. Cast Aluminium End Caps
Cast aluminium caps are another option commonly found in the fencing market.
Advantages
-
Metallic appearance
-
Available in various shapes
- Affordable
Disadvantages
-
Often require modification to fit correctly
-
Can be brittle
-
May warp during manufacture
-
Can contain impurities
-
Often require glue for retention
-
Porous surface may affect finishing
Because cast components are formed rather than precision machined, fitment can vary significantly between suppliers and extrusion profiles.
5. Aluminium End Caps
Aluminium end caps are designed to suit specific extrusion or batten sizes and wall thicknesses.
At Nelsons CNC, our aluminium end caps are manufactured from premium 6060-T5 aluminium and machined on CNC machining centres to suit individual extrusion profiles.
Advantages
-
Precision machined for specific extrusion sizes
-
Interference fit installation
-
No welding required
-
No glue required
-
No screws required
-
Can be powder coated
-
Suitable for timber-look finishing processes
-
Premium architectural appearance
Disadvantages
- Not a one-size-fits-all solution
- Requires accurate measurements before ordering
- Outside dimensions alone are not enough to determine the correct fit
- Wall thickness and corner radius must also be considered
- Variations between extrusion manufacturers can occasionally affect fitment
Nelsons CNC aluminium end caps are designed with a precision interference fit, allowing them to be installed quickly using a rubber mallet while remaining securely retained within the extrusion.
Because they are manufactured to suit specific extrusion profiles, it is important to measure your extrusion correctly before ordering - ideally with a digital vernier. We recommend measuring:
- Outside dimensions
- Wall thickness on all four sides
- Internal corner radius where possible
Like all aluminium extrusions, minor dimensional variations can occur between different extruders and even between extrusion runs. This means that two extrusions with the same nominal size may not always have identical internal dimensions.
To accommodate these variations, selected Nelsons CNC end caps can be supplied with what we call pips.
Pips are small raised features on the interference-fit section of the end cap that lightly bite into the internal wall of the extrusion during installation. These additional grip points help accommodate minor dimensional variations and provide extra retention where required due to tolerance variation in the extrusion.
With over 600 sizes available, measuring accurately with digital verniers before ordering will help ensure you select the correct end cap for your extrusion.
Our end caps are designed with a precision interference fit, allowing them to be installed quickly using a rubber mallet while remaining securely retained within the extrusion.
Because they are manufactured from aluminium, they can be colour matched, powder coated or timber-look sublimated, to suit the finished project, creating a seamless appearance across fences, gates, screens and architectural battens.
One of the advantages of aluminium end caps is that they are not limited to standard extrusion sizes.
Many fencing, screening and architectural systems utilise proprietary aluminium extrusions that are unique to a particular manufacturer. In these situations, off-the-shelf end caps often don't exist.
At Nelsons CNC, we can manufacture custom aluminium end caps to suit virtually any extrusion profile. In many cases, all we need is the extrusion die drawing to create a precision-machined end cap designed specifically for that section.
This allows fabricators, architects and system manufacturers to achieve a consistent, premium finish across custom projects and proprietary aluminium systems.
Which Aluminium Batten End Cap Is Best?
The right solution depends on your project requirements.
For pre-manufactured fencing systems, the proprietary end caps supplied with the system may be the simplest option, however, if replacement end caps are required, the original caps are no longer available, or a more durable aluminium alternative is preferred, Nelsons CNC can often provide a solution.
In many cases, the section used within a fencing system is simply a standard aluminium hollow section that we already manufacture end caps for. Where a suitable stock size isn't available, we can manufacture custom end caps to suit proprietary extrusion systems. In most cases, all we require is an extrusion sample or die drawing to develop a precision-machined solution.
For custom fabricated aluminium batten fencing, many fabricators are moving away from welding and towards precision-machined aluminium end caps because they provide a clean architectural finish without the labour associated with welding, grinding, glue or screws.
How Are Aluminium End Caps Installed into Batten Fencing?
Nelsons CNC aluminium end caps are designed with a precision interference fit, meaning the fitting section of the cap is manufactured slightly larger than the internal dimensions of the extrusion.
Installation is simple:
- Confirm you have selected the correct end cap for your extrusion.
- Align the end cap with the end of the batten.

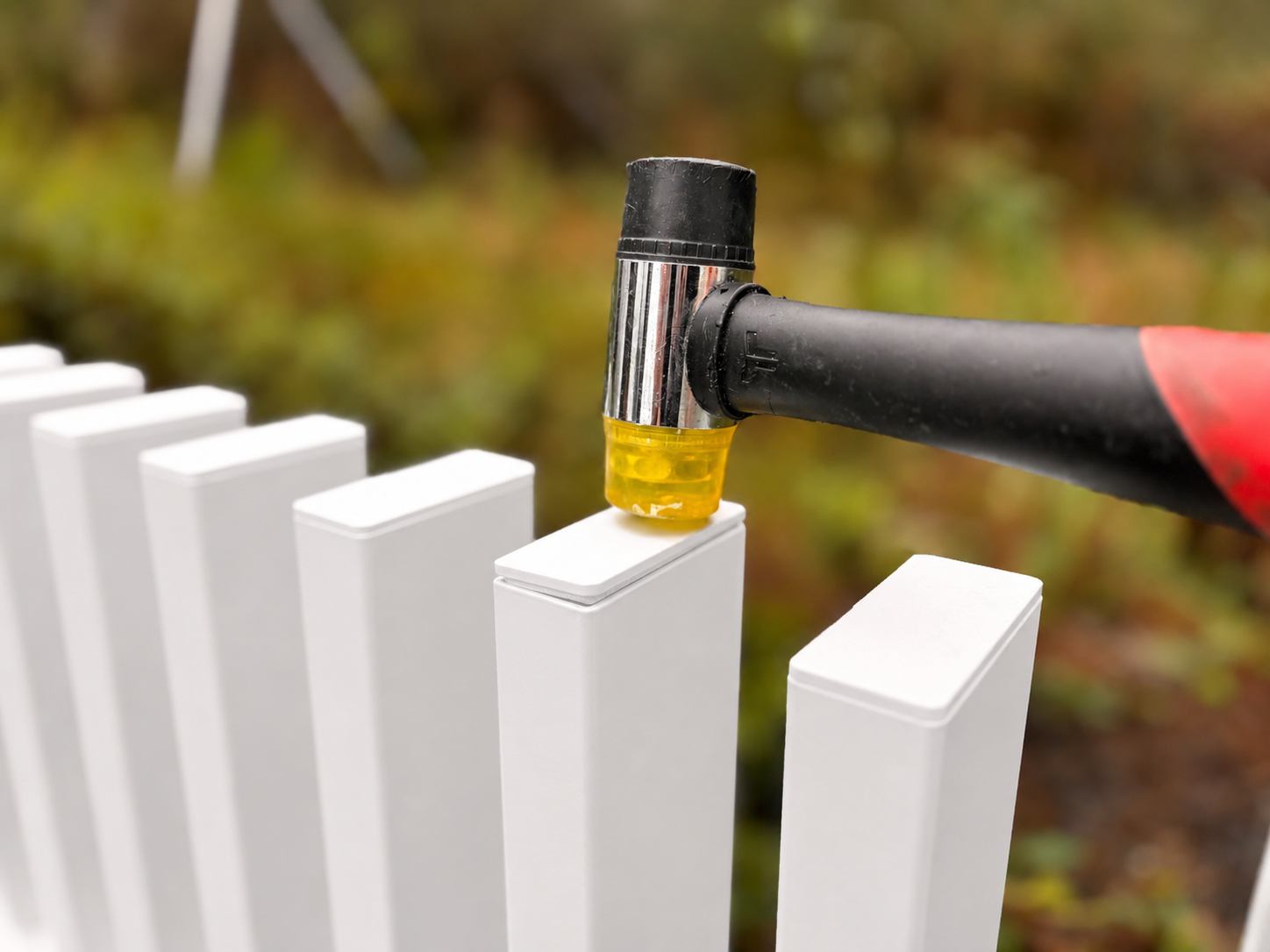

- Using a rubber mallet, gently tap the end cap into position until fully installed.
No welding, glue, screws or silicone are required. The end cap should be a tight, flush finish with no movement if installed into the batten correctly.
The interference-fit design creates a secure mechanical connection between the end cap and the extrusion, providing a clean, professional finish without additional fixing methods. The result is a fast, simple installation process that can save significant labour compared with welding and finishing aluminium battens.
When appearance, fit and long-term performance matter, choosing an end cap designed specifically for the extrusion profile can make all the difference.
